Oster 716 Industrial Pipe and Bolt Threading Machine-6" Capacity
| Capacities | |
| Standard Pipe Range | 1" to 6" |
| Standard Bolt Range | 1" to 4" |
|
General Specifications |
|
| Spindle Speeds, Variable | 12-18-29-43 |
| Carriage Travel | 18.5" |
| Length | 81" |
| Width | 35" |
| Height | 58" |
| Net Weight | 3160 lbs. |
| Shipping Weight | 3550 lbs. |
The Most Versatile & Rugged 6” Threading Machine
Quality built to give reliable performance 24 hours a day, day in and day out. The Bedways and Carriage are hand scraped for accurate alignment and the Precision Spindle revolves in "Timken" tapered roller bearings. When required, this machine can be moved without fear of disturbing this precision alignment
| Capacities | |
| Standard Pipe Range | 1" to 6" |
| Standard Bolt Range | 1" to 4" |
|
General Specifications |
|
| Spindle Speeds, Variable | 12-18-29-43 |
| Carriage Travel | 18.5" |
| Length | 81" |
| Width | 35" |
| Height | 58" |
| Net Weight | 3160 lbs. |
| Shipping Weight | 3550 lbs. |

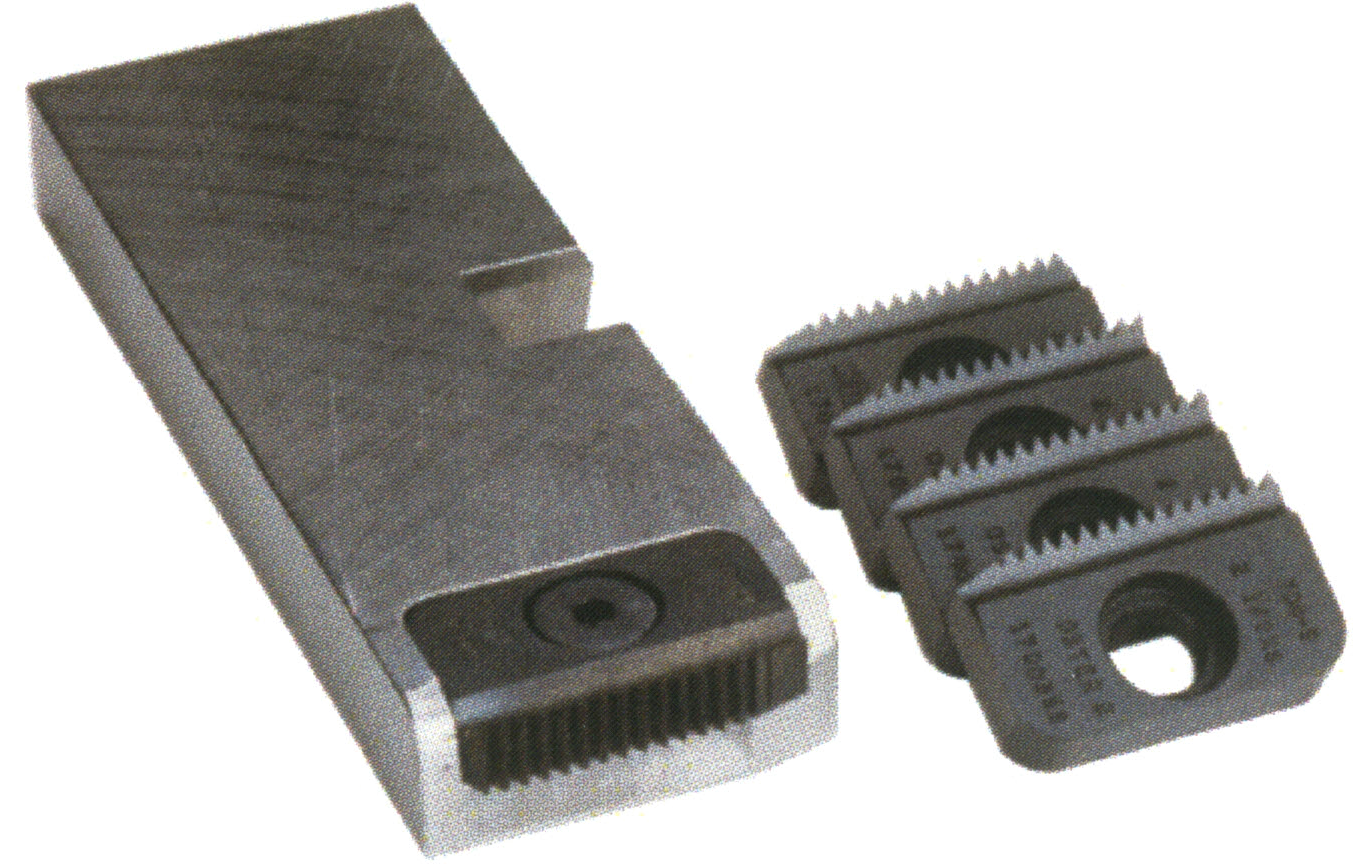

Heavy Duty Tool Steel Dies
Heavy Duty M2 Steel Dies are economical, segmental type, held in massive holders for stability. Dies can be reground any one segment can be matched with the set. One set of holders and dies thread all pipe sizes right hand, of the same pitch, without change.

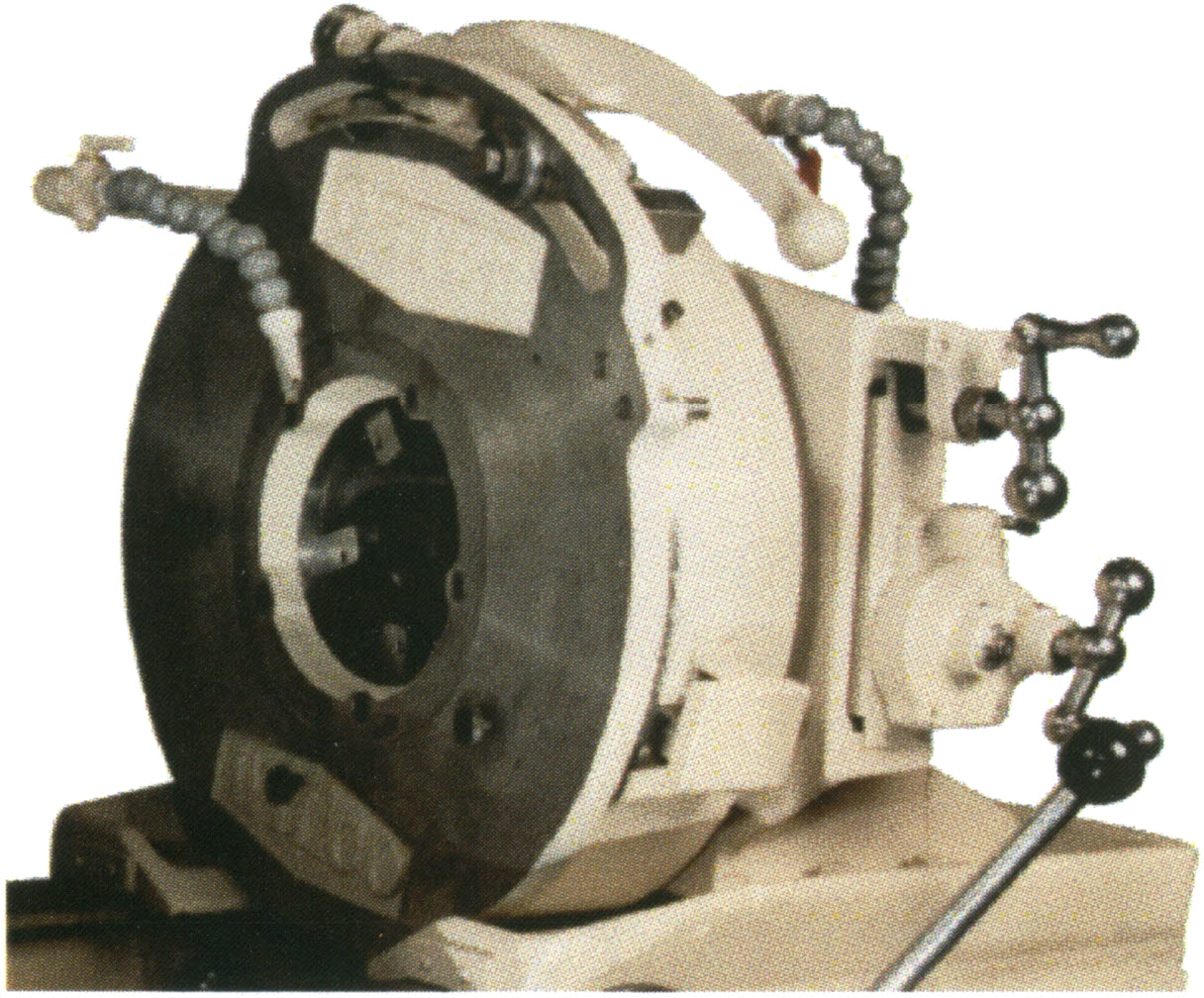

Never a Diehead Change for the Oster 716 Threading Machine
A single, quick-opening, ruggedly built diehead covers entire range of the No. 716 Machine.

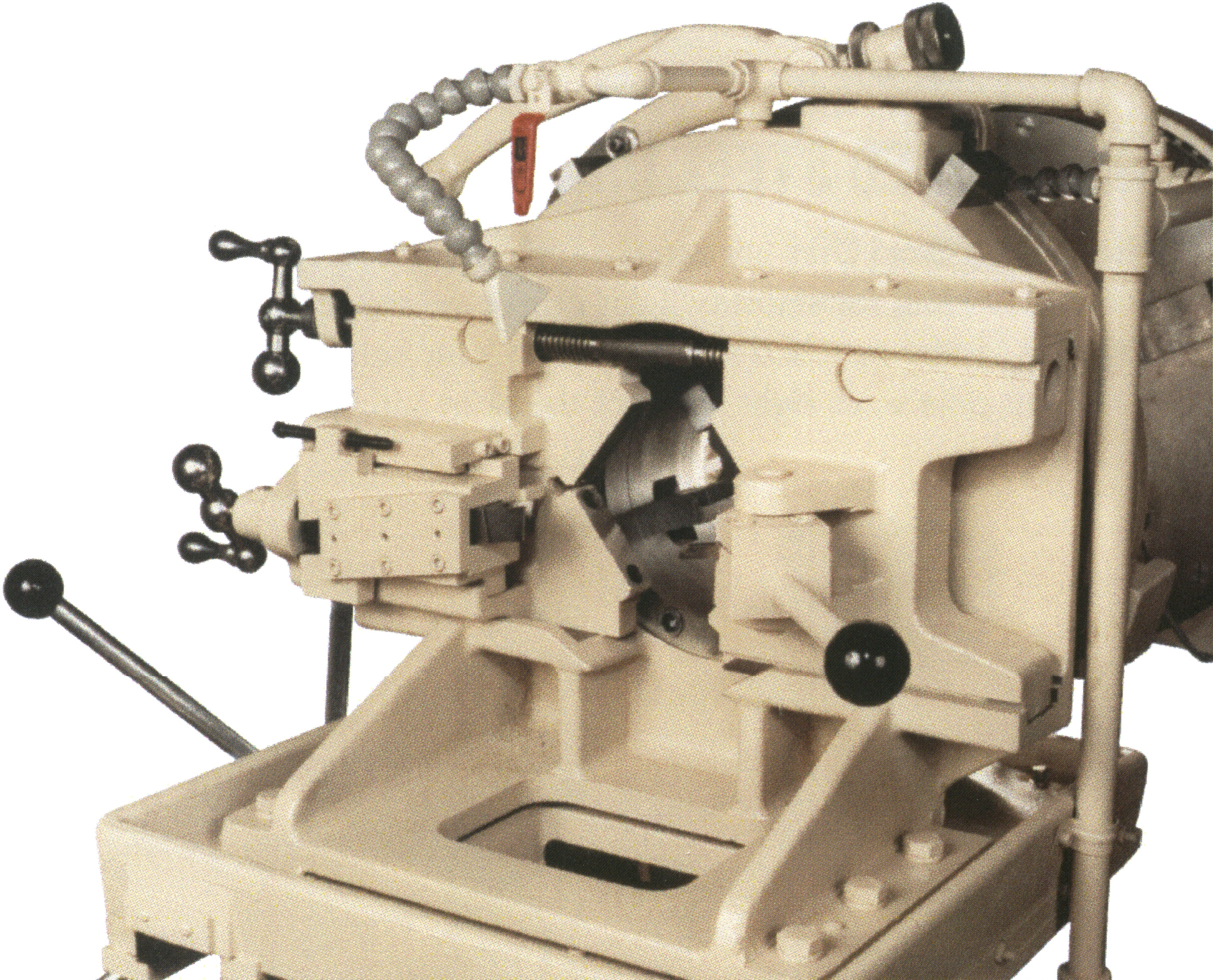

Cut-off, Reaming & Chamfering
A cross rail is mounted on rear of die-head and contains a block holding both the lathe type cut-off and the chamfer tool. A swing type reamer does a thorough job of removing the burr from the inside of pipe.
Find the Right Oster Solution for Your Needs
Looking for specifications, replacement parts, or threading tips? Our Oster Product Guide is your go-to resource for everything related to Oster threading machines. Get detailed product insights, die and accessory options, and expert maintenance tips to keep your equipment running at peak performance. Download our product guide to explore our full range of solutions.
Accessories for the Oster 716 Pipe and Bolt Threading Machine
Victaulic Type Grooving Tool Attachment
These Tools automatically insure correct depth, width and distance from pipe end for Victaulic Grooving applications. Available as extra equipment with the No. 784 Machine.
Rear Gripping Chuck
No. 02969 replaces rear centering chuck, wrenchless - three flange jaws - universal gripping.
Additional Accessories for the Oster 716 Threading Machine
No. 6 Nipple Chuck, Adjustable Pipe Supports, OSTO – Oster’s Superior Threading Oil
Standard Equipment Furnished
- Motor - 5hp., 1200 rpm., 3 phase, 60 Hz. 230 or 460 volts. (Motors of other specifications available.)
- Motor Control - REVERSING magnetic starter and push button station, with safety 120V control circuit at machine controls.
- Dieheads - ONE, adjustable to handle all sizes in standard range - 1" to 6" pipe.
- Die Holders - TWO sets to cover standard pipe range. One set 1" - 2", one set 2.5" - 6".
- Dies - TWO sets, High Speed Steel, to cover standard pipe range - 1" to 6" (Symbol 704-6).
- Reamer - Swing-type.
- Cut-Off Device - Lathe style, blade type cut-off tool with double V block centering device.
- Chamfer Tool - Lathe type, mounted in cut-off block.
- Front Chuck - Three-jaw, universal gripping.
- Rear Centering Chuck - Universal centering, hand wheel operated.
- Gage - Direct reading DRUM type, mounted on carriage handwheel.
- Oil Pump - Centrifugal, self contained motor drive.
- Oil - Thread cutting, TEN gallons-Oster "OSTO".
Dark Thread Cutting Oil for Pipe and Bolt Threading Machines
Keep threads cool and reduce friction with Oster’s Superior Threading Oil (“OSTO”) dark thread cutting oil. Our high-quality dark thread cutting oil increases the life of your die and ensures perfect threads every time. OSTO outperforms competitors every time, preventing chip welding and formulated to have a vise-like grip on the work material. Best of all, OSTO features an infinite shelf life and never goes bad or breaks down during the threading process.
